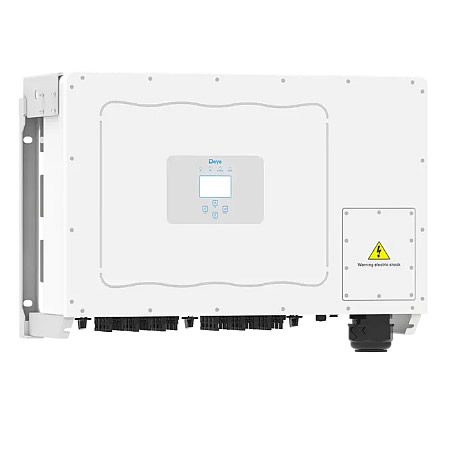

Solis-3P(5-10)K-4G-LV | Three PhaseThe Deye 70-110K grid-connected inverter is suited for medium and large-scale commercial rooftops and ground-mounted solar PV system in which reliability and stability are important. the full series inverter has 30% DC input oversizing ratio and 10% AC output overloading ratio, offering a faster return on investment.
Technical Specifications
| Model | SUN-70K-G03 | SUN-75K-G03 | SUN-80K-G03 | SUN-90K-G03 | SUN-100K-G03 | SUN-110K-G03 |
| PV String Input Date | ||||||
| Max. PV Input Power(kW) | 91 | 97.5 | 104 | 135 | 150 | 150 |
| Max. PV Input Voltage(V) | 1000 | |||||
| Start-up Voltage(V) | 250 | |||||
| MPPT voltage range(V) | 200-850 | |||||
| Rated PV Input voltage(V) | 600 | |||||
| Max. Input Short Circuit Current (A) | 60+60+60+60 | 60+60+60+60+60+60 | ||||
| Max. Operating PV Input Current(A) | 40+40+40+40 | 40+40+40+40+40+40 | ||||
| No. of MPP Trackers/No. of Strings per MPP Tracker | 4/4+4+4+4 | 6/4+4+4+4+4+4 | ||||
| AC Output Side | ||||||
| Rated AC Output Active Power(kW) | 70 | 75 | 80 | 90 | 100 | 110 |
| Max. AC Output Apparent Power(kVA) | 77 | 82.5 | 88 | 99 | 110 | 121 |
| Rated AC output current (A) | 106.1/101.5 | 113.6/108.7 | 121.2/115.9 | 136.4/130.4 | 151.5/144.9 | 166.7/159.4 |
| Max. AC Output Current(A) | 116.7/111.6 | 125/119.6 | 133.3/127.5 | 150/143.5 | 166.7/159.4 | 183.3/175.4 |
| Rated output voltage/range (V) | 220/380V, 230/400V 0.85Un-1.1Un | |||||
| Grid Connection Form | 3L+N+PE | |||||
| Rated Output Grid Frequency/range(Hz) | 50/45-55, 60/55-65 | |||||
| Power Factor Adjustment Range | 0.8 leading to 0.8lagging | |||||
| Total Current Harmonic Distortion THDi | <3% | |||||
| DC Injection Current | <0.5%ln | |||||
| Efficiency | ||||||
| Max. Efficiency | 98.70% | 98.80% | ||||
| Euro Efficiency | 98.10% | 98.20% | ||||
| MPPT Efficiency | ＞99% | |||||
| Equipment Protection | ||||||
| DC Polarity Reverse Connection Protection | yes | |||||
| AC Output Overcurrent Protection | yes | |||||
| AC Output Overvoltage Protection | yes | |||||
| AC Output Short Circuit Protection | yes | |||||
| Thermal Protection | yes | |||||
| DC Terminal Insulation Impedance Monitoring | yes | |||||
| DC Component Monitoring | yes | |||||
| Ground Fault Current Monitoring | yes | |||||
| Power Network Monitoring | yes | |||||
| Arc Fault Circuit Interrupter (AFCI) | Optional | |||||
| Island Protection Monitoring | yes | |||||
| Earth Fault Detection | yes | |||||
| Overvoltage Load Drop Protection | yes | |||||
| Residual Current (RCD) Detection | yes | |||||
| Surge Protection Level | TYPE II(DC),TYPE II(AC) | |||||
| Interface | ||||||
| Communication Interface | RS485/RS232 | |||||
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | |||||
| General Data | ||||||
| Operating Temperature Range (°C) | -25 to +60℃, >45℃ Derating | |||||
| Permissible Ambient Humidity | 0~100% | |||||
| Permissible Altitude (m) | 4000m | |||||
| Noise (dB) | ≤ 55 | |||||
| Ingress Protection(IP) Rating | IP 65 | |||||
| Inverter Topology | Non-Isolated | |||||
| Over Voltage Category | OVC II(DC),OVC III(AC) | |||||
| Cabinet Size (WxHxD mm) | 824mm*516mm*312.7mm（Excluding connectors and brackets） | |||||
| Weight [kg] | 81 | |||||
| Warranty [year] | 5 years | |||||
| Type Of Cooling | Intelligent air cooling | |||||
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, | |||||
| OVE-Richtlinie R25, G99, VDE-AR-N 4105 | ||||||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||||
